HOME >> PRODUCTS >>COMMERCIAL LED MODULE SOLUTION >>Indoor Flat LED module series >> P3 INDOOR LED MODULE
Product Detail

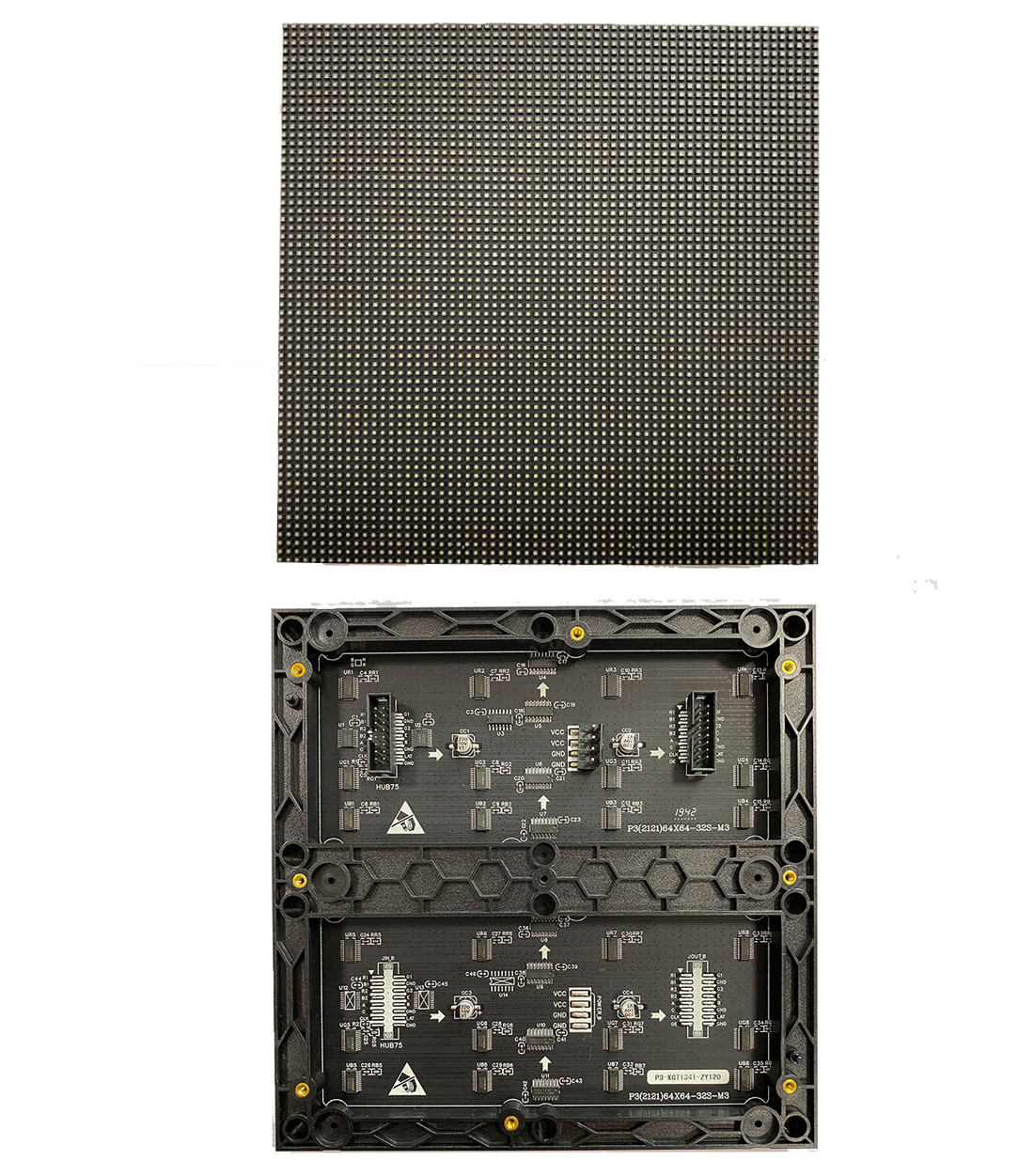

P3 INDOOR LED MODULE

商品说明



Specifications

INDOOR LED MODULE P3（2022）

P3 indoor Full Color Display SMD2020(1R1G1B)

 Item

Technical parameter





 Panel

Dimension

（W）192mm*192mm（H）

Pixel pitch

3mm

Pixel Density

111111/ M2

Pixel configuration

1R1G1B

LED specification

SMD20020

Pixel resolution

（W）64*64（H）

Average power

8W

Panel weight

0.20KG







Cabinet&Bracket



Humidity

 10%-95%RH

Quantity of panel


Hub connecting

 HUB75

Best viewing angle

Horizontal >170  Vertical>120

Best viewing distance

5-30M

Working temperature

-20-+60

Panel power supply

5V40A

Screen power supply

220VAC/50HZ+_10%

Max power

 <700W/M²/PANEL

Average power

 350W/M²/PANEL



Technical parameter

Driving device

FM6363Constant current drive

Drive type

1/64Scanning

Refresh frequency

3200-3840HZ/S

Display color

4096*4096*4096

Brightness

370-450cd/M2

Life span

100000Hours

Communication distance

<100M
